What are the key components of Model-Based Reinforcement Learning algorithms to address the sparse reward problem?

Reinforcement Learning (RL) has recently seen significant advances over the last decade in simulated and controlled environments. RL has shown impressive results in difficult decision-making problems such as playing video games or controlling robot arms, especially in industrial applications where most methods require many interactions with the system to achieve good performance, which can be costly and time-consuming. Model-Based Reinforcement Learning (MBRL) promises to close this gap by leveraging learned environment models and using them for data generation and/or planning and, at the same time trying to be sample efficient. However, Learning with sparse rewards remains a significant challenge in the field of RL. To promote efficient learning the sparsity of rewards must be addressed. This thesis work tries to study individual components of MBRL algorithms under sparse reward settings and investigate different design choices made to measure the impact on learning efficiency. Suitable Integral Probability Metrics (IPM) are introduced to understand the predictive model reward and observation space distribution during training. These design combinations will be evaluated on continuous control tasks with established benchmarks.

The major motivation behind studying sparse reward problems is that it requires close to no domain knowledge to design a reward function for a given task/environment. For example, in a continuous control task where a robotic arm task is required to stack an object on top of other objects, we can assign a sparse reward of 1 if the robotic arm successfully stacks the object and 0 otherwise. Designing intermediate rewards in this scenario can be challenging and in most cases not practical. The sparse reward problem has been addressed in previous state-of-the-art literature in a plethora of ways. However, research in MBRL under a sparse reward setting has not answered some key questions such as how accurate and diverse the model should be, how much off-policy data must be stored inside the model buffer, and how long the rollout trajectory should be. While it is fairly common for authors to regularly experiment and provide various algorithms for solving sparse reward tasks, it remains an open question as to what the key ingredients and design choices which are essential for solving sparse reward tasks. The study carried out in this thesis helps us understand why some hyperparameter design choices might be working better than others through the lens of the dataset which we use to train the agent.
The primary focus of this study revolves around understanding the essential elements within the Model-Based Reinforcement Learning algorithm that effectively tackles the challenge of sparse rewards. The objective of this thesis is to thoroughly examine the current state-of-the-art MBRL algorithm, namely Model-Based Policy Optimization (MBPO), and investigate the impact of various design decisions in the algorithm design when dealing with sparse rewards scenarios. Modifications suggested in the literature are used as a starting point for benchmarking performance under sparse rewards in a customized sparse inverted pendulum, mountain car continuous, which are stochastic in terms of their initial state and are well suited for testing continuous control tasks.

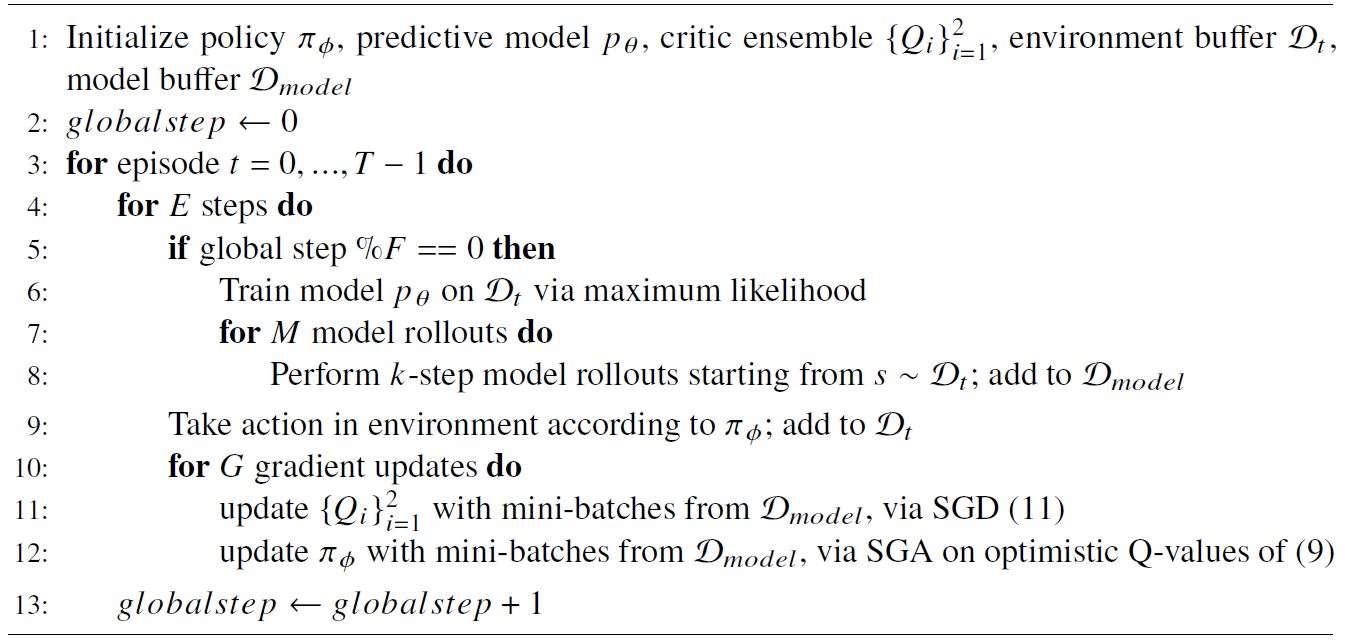

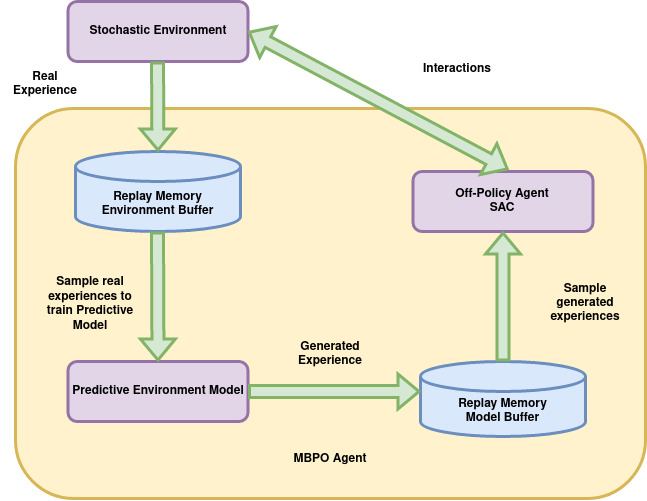

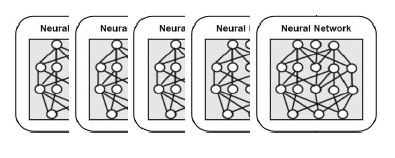

The natural choice of the MBPO model-based algorithm to further investigate is that it is a natural extension of the model-free counterpart SAC. In this approach, the learned model is used to gather imaginary data to train a policy. To gather this imaginary data, a bootstrap ensemble of dynamics model is utilized where each member of the ensemble is a probabilistic neural network. Using probabilistic neural networks, aleatoric uncertainty, or noise in outputs relative to inputs, is captured while bootstrapping ensures to capture of epistemic uncertainty or uncertainty in model parameters. To generate a prediction from the ensemble, a random model is sampled from the ensemble of the dynamics model to test different transitions along a single model rollout.

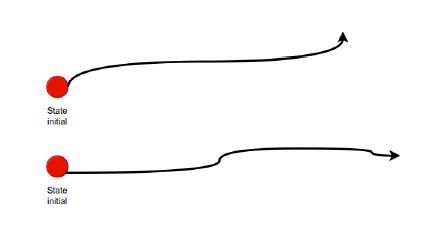

We discuss the list of main model-based hyperparameters utilized in this study for carrying out the ablation study and which play an important role in the design choices of the MBRL algorithm.

Integral probability metrics are employed to measure the impact of design choices. This is achieved by evaluating the discrepancy between the distribution of observations and rewards perceived by the model and the state and reward distributions in a real-world environment. Specifically, the Wasserstein distance metric is employed to quantify the discrepancy between rewards observed by the model and the actual rewards distribution present in the environment. The maximum mean discrepancy distance metric is utilized to assess the dissimilarity between the state distribution as observed by the model and the state distribution in the actual environment. These established metrics assist in illuminating the model interpretation of rewards and states when considering different components of the MBRL algorithm.

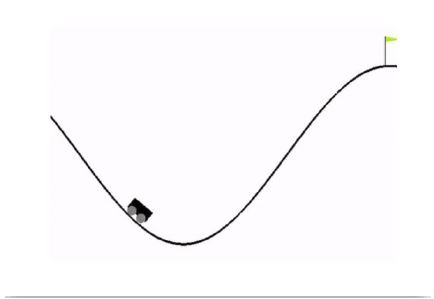

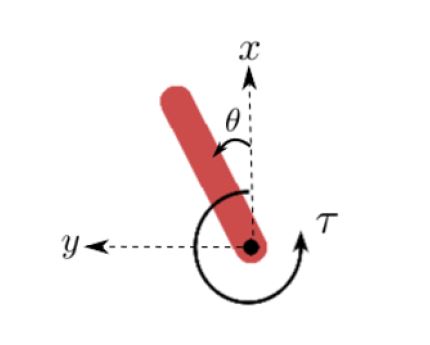

The study was carried out in two continuous control sparse reward environments namely Sparse Inverted Pendulum and Continuous Mountian car as shown in Figures 7 and 8 respectively.

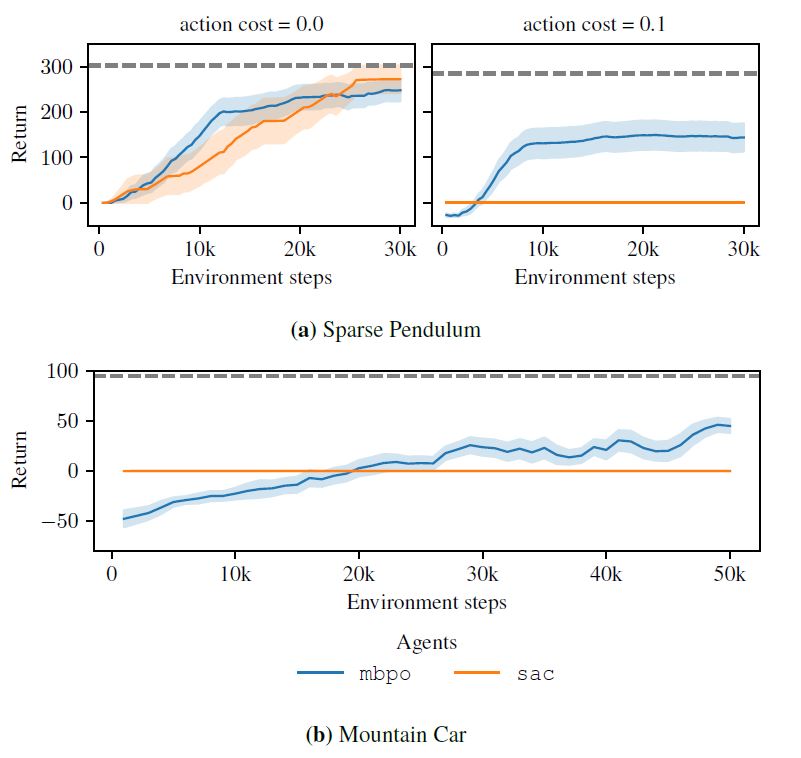

We initially investigate the performance of model-free SAC and model-based MBPO agents in environments with sparse rewards. Two scenarios are considered: a sparse pendulum environment and a continuous mountain car environment. The introduction of an action cost, representing a penalty for certain actions, aims to make solving the sparse reward problem more challenging. The results show that in the absence of an action cost, both model-free and model-based agents successfully find sparse rewards. The model-based agent tends to converge faster. However, when an action cost is applied, the model-free SAC struggles due to its reliance on unstructured exploration. In contrast, the model-based MBPO agent performs better, utilizing its learned model to explore effectively and find solutions for a significant portion of trials. Similar conclusions are drawn from a study on the continuous mountain car problem. The SAC algorithm's unstructured exploration is found insufficient for these challenging tasks, while MBPO achieves better results.

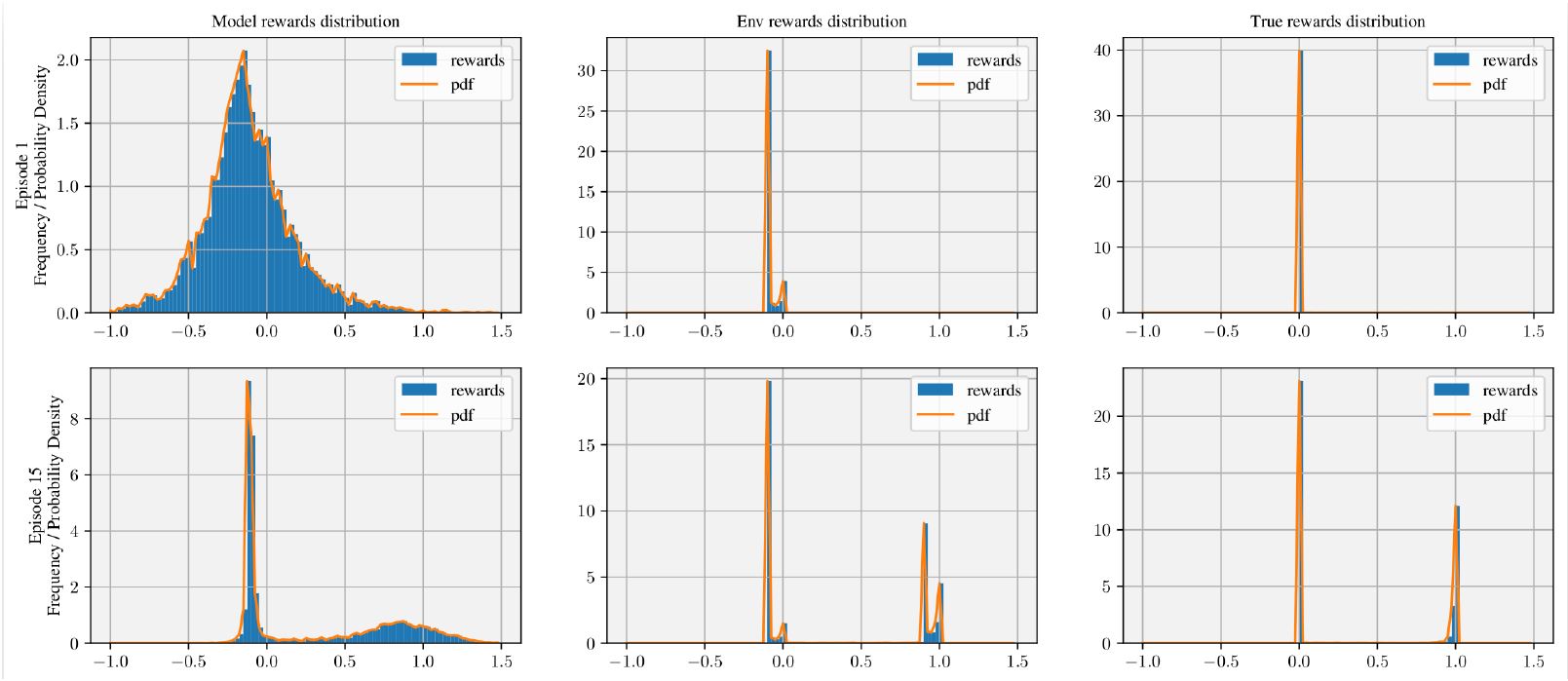

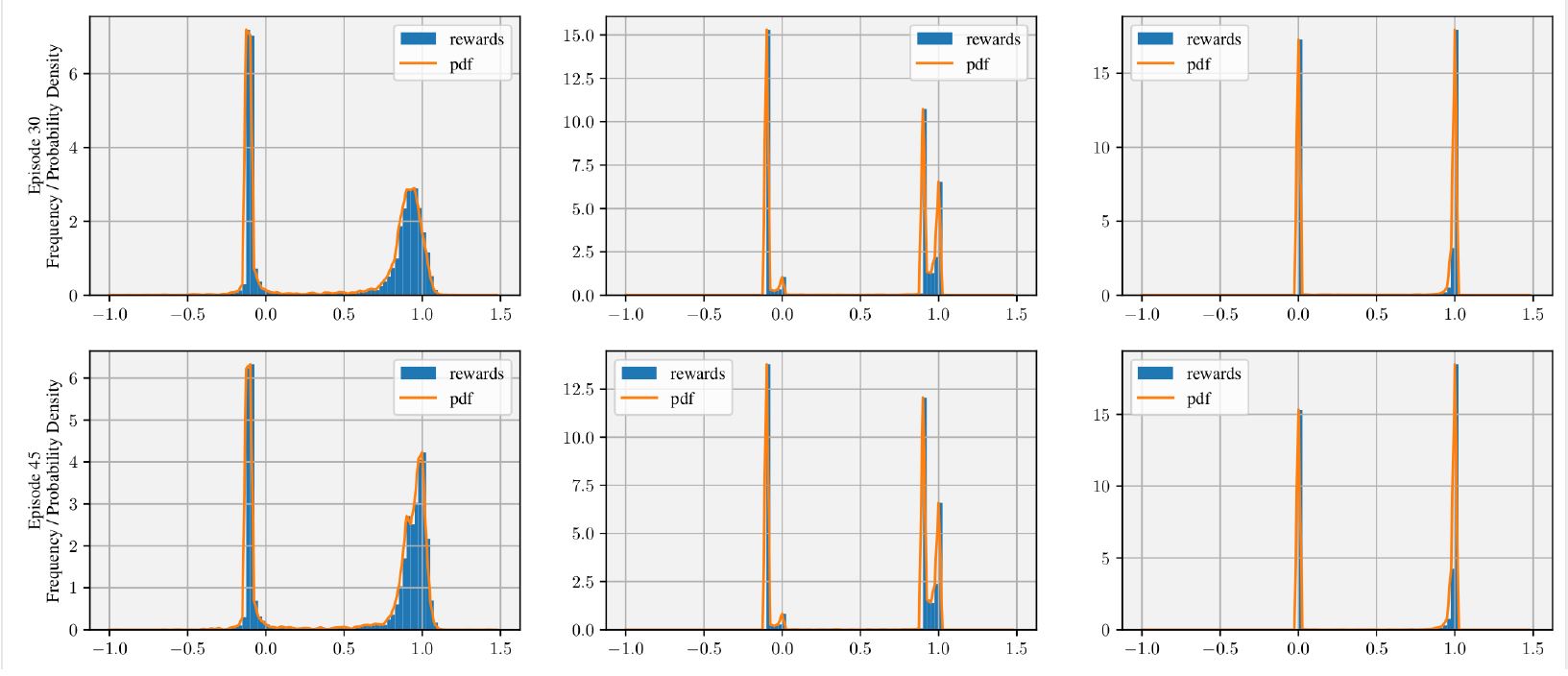

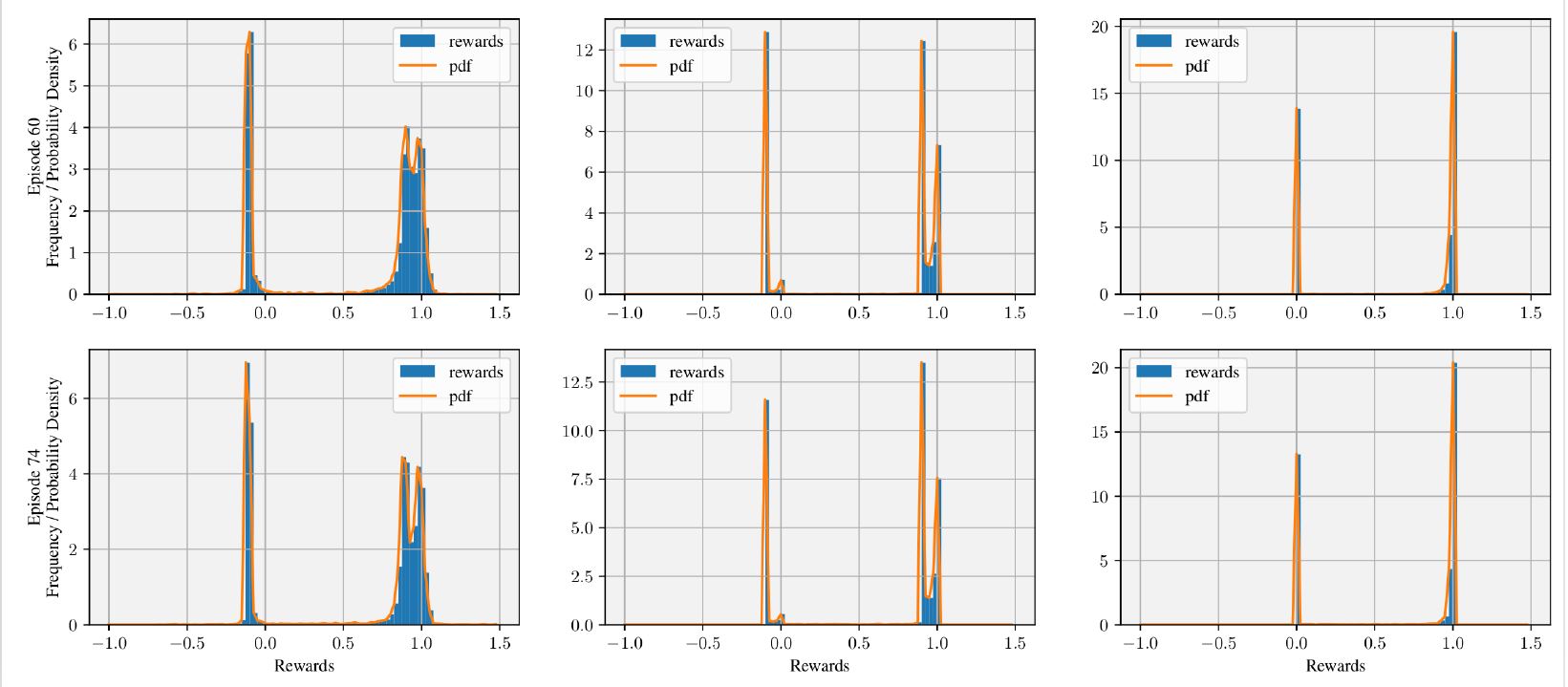

Figure 10 Figure 10 illustrates an experiment using an MBPO agent in a sparse pendulum environment, depicting reward distribution changes during training. The comparison involves the model predictions, the actual environment, and the true reward distribution. The true reward distribution is generated by passing model observations and actions through the environment's reward function. Initially, the agent explores widely due to an inaccurate model, leading to a broad reward distribution. With experience and model updates, predictions become more accurate, especially as actual rewards begin to appear. Initially, the distribution is wide around sparse reward regions due to limited data. As experience accumulates around reward areas, the distribution narrows and concentrates around the reward. This analysis enhances understanding of how the model perceives rewards. The study further explores how various hyperparameter combinations impact the model's perception and reward distribution, aiding in solving sparse reward problems.

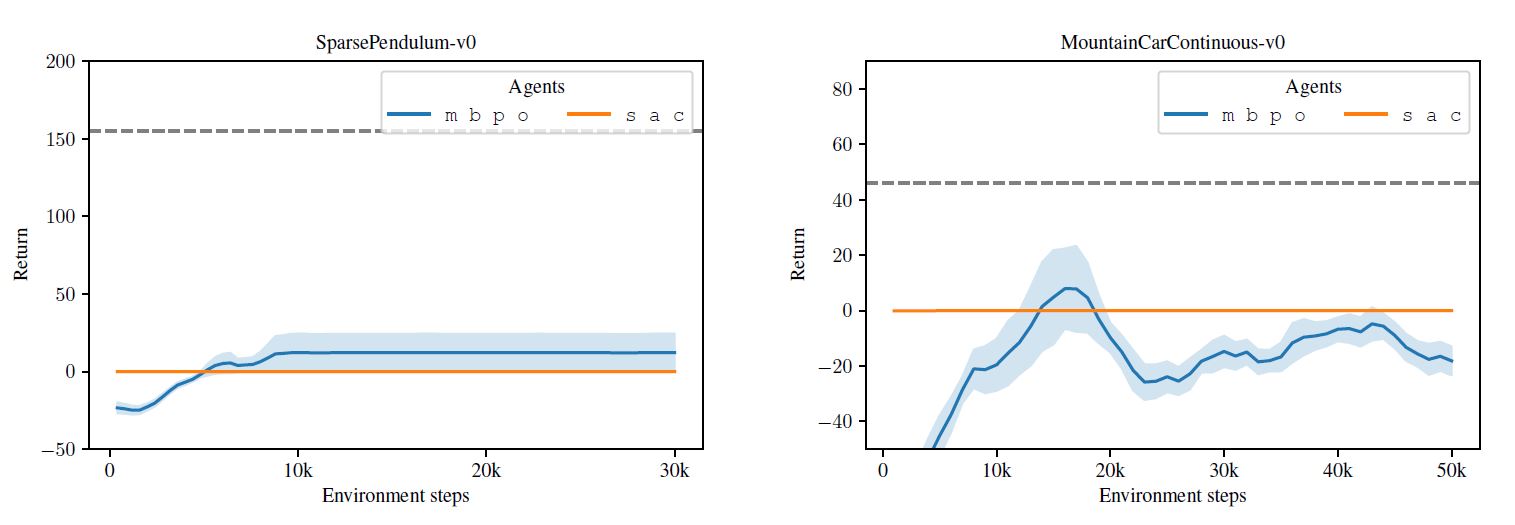

To understand the key hyperparameters in the MBRL algorithm, adjustments were made to align MBPO's performance with model-free SAC in sparse reward settings. By modifying existing model-based hyperparameters, the performance of MBPO was approximated to that of SAC. This was achieved with 20 seeds and an ensemble size of 1. Experimenting with scaled-up hyperparameters individually further analyzed their influence on MBPO's performance in sparse rewards. MBPO's performance was matched to model-free SAC by leveraging the fact that MBPO employs model-free SAC as a policy optimization component, making it an extended iteration of model-free SAC in a model-based context.

We performed an extensive study on the hyperparameters after reducing the performance of model-based MBPO close to model-free SAC. We discuss here the most important findings of the study and for more detailed insights into the study please refer to the final thesis report attached at the beginning of the page.

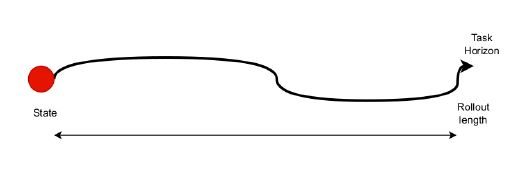

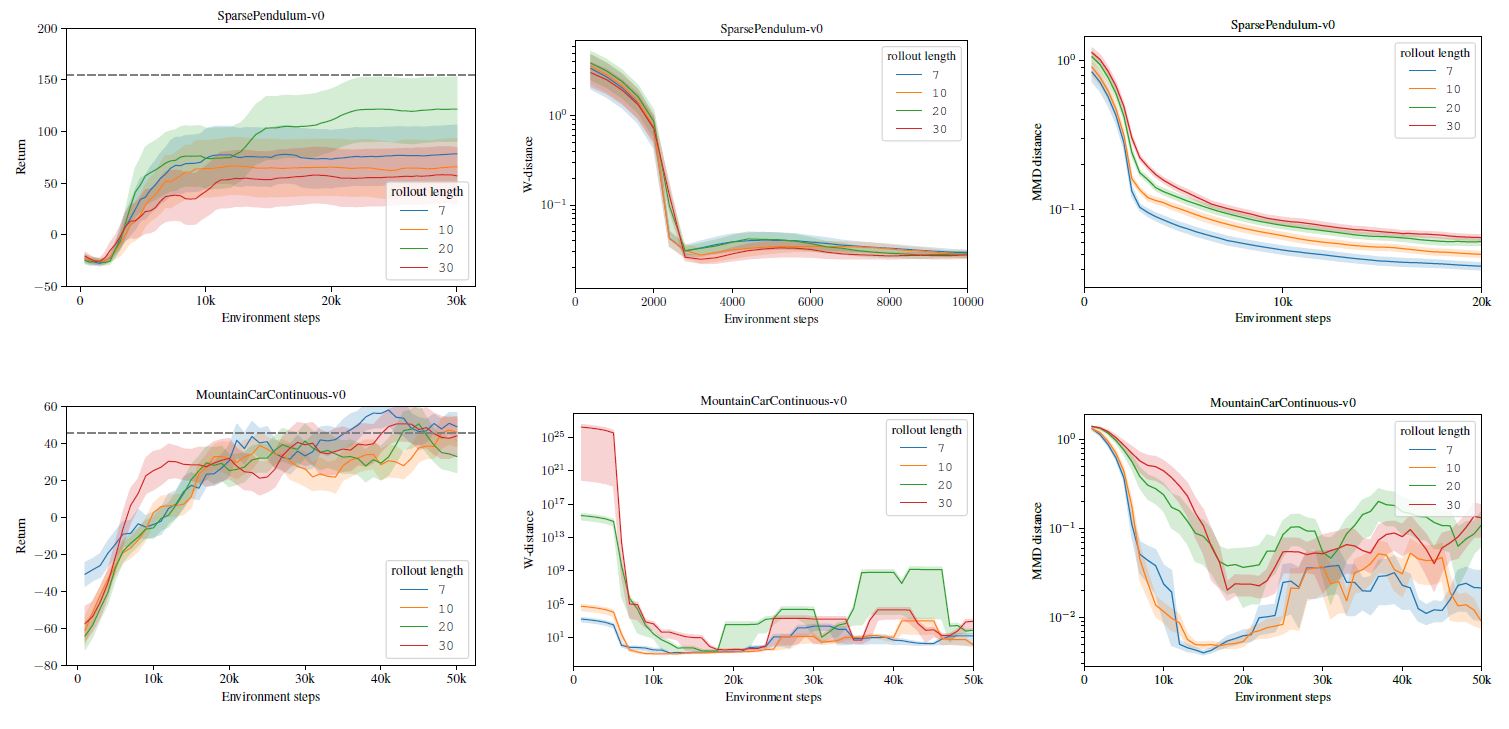

Figure 15 shows the impact of longer rollout lengths in sparse reward environments using different rollout lengths. In sparse pendulum, a rollout length of value 20 was most effective, while in mountain car, varying rollout length values had similarly positive impacts, exceeding baseline performance. Wasserstein and MMD distance metrics confirmed these trends.

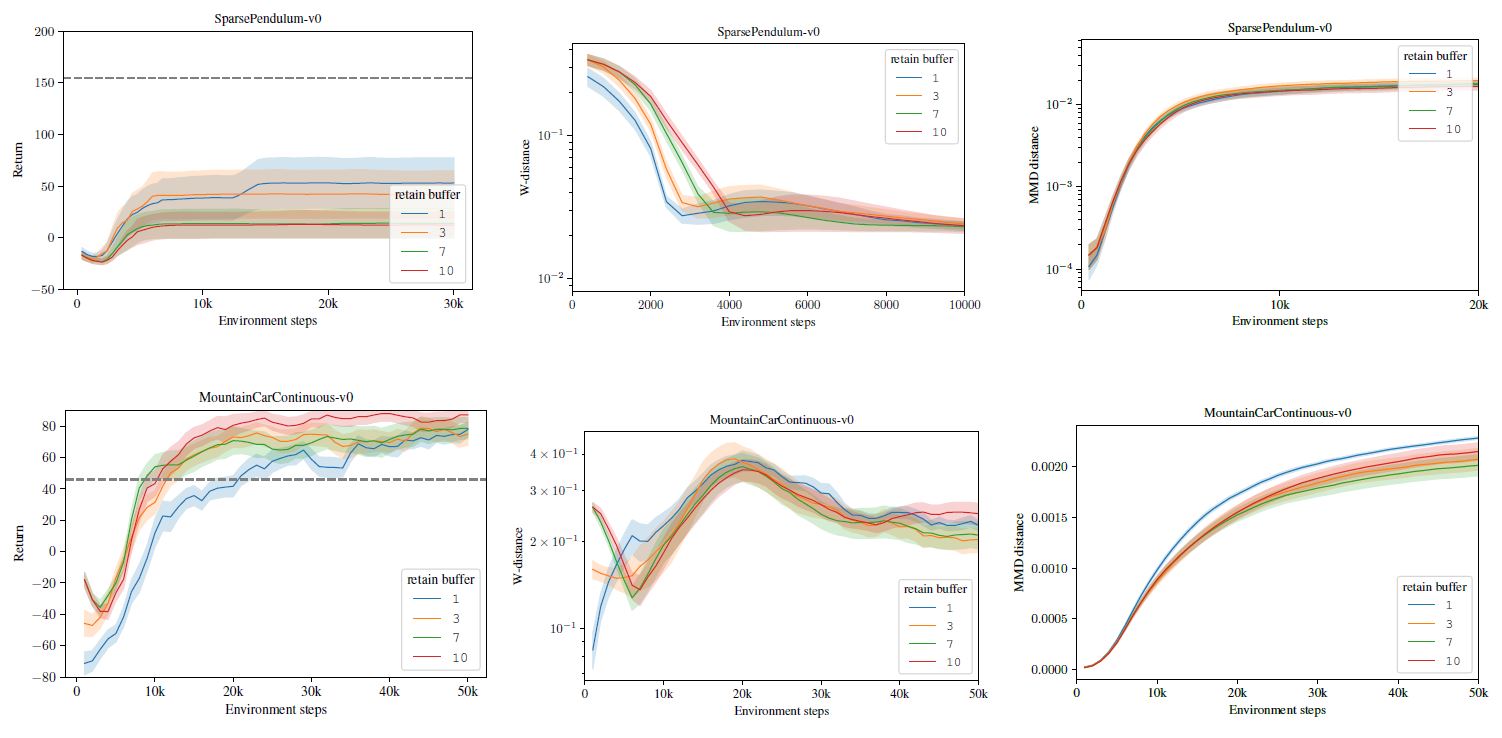

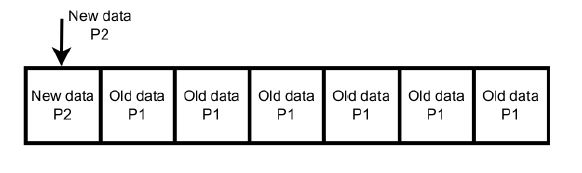

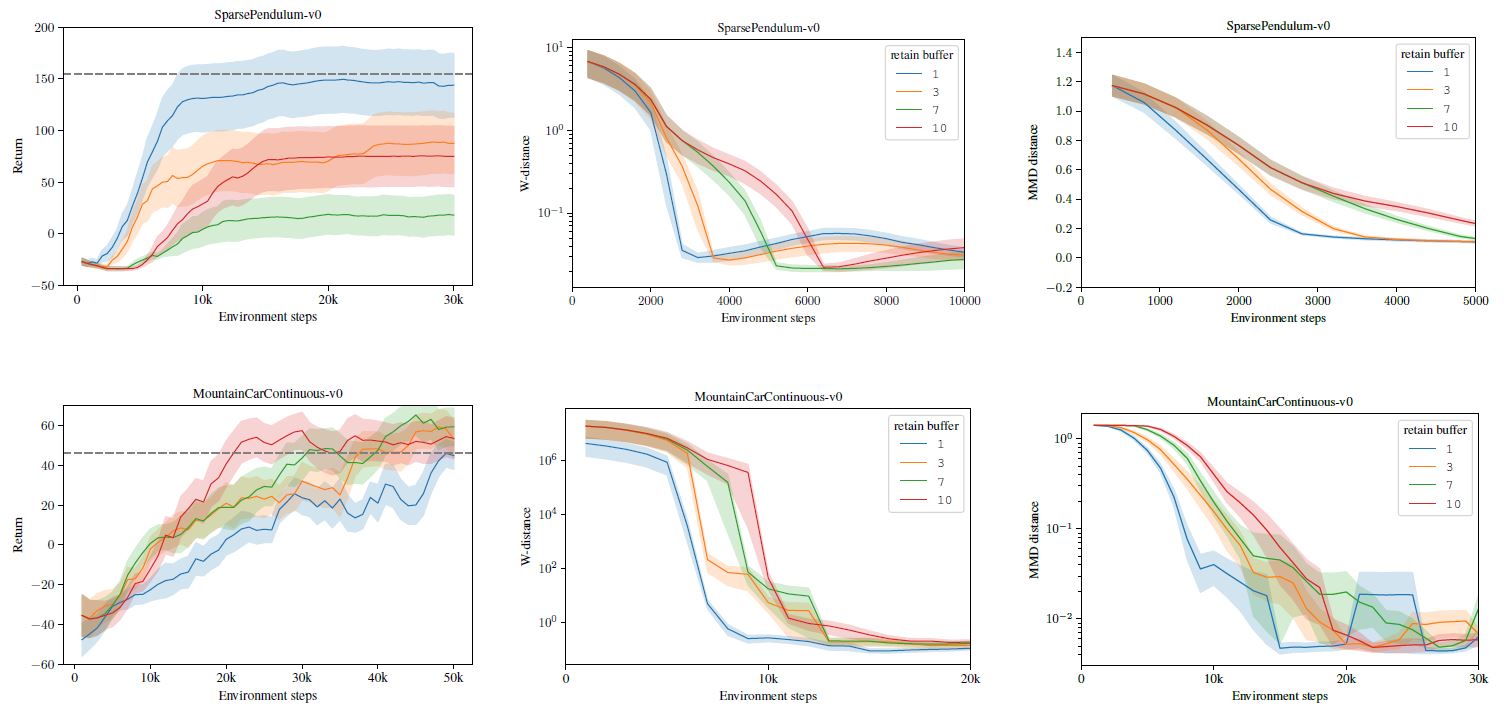

Figure 16 investigates buffer update retention effects in sparse reward environments. In mountain cars, more off-policy data improves learning significantly, while in the sparse pendulum, off-policy data has little impact, favoring on-policy updates. This observation aligns with the evaluation return plot and distance metric results, reinforcing the role of off-policy data in enhancing complex learning scenarios like mountain cars.

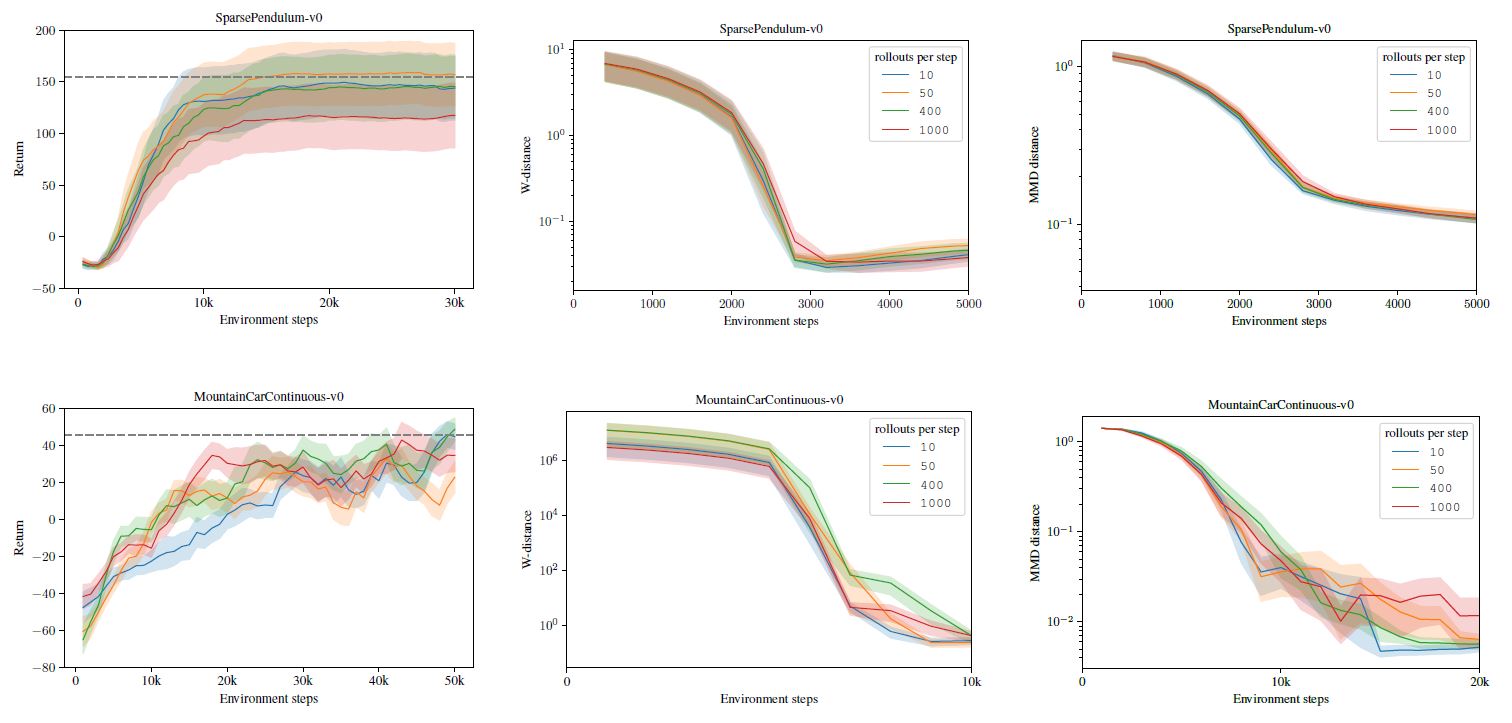

In this study, we examined the influence of different model-based hyperparameters on model learning and observed which combination of these hyperparameters had the most substantial effect on the policy optimization process. We discovered that longer rollout lengths made a substantial contribution to the evaluation returns in both sparse reward environments. We also observed that an ensemble size of one failed to effectively capture the environment dynamics in both sets of sparse reward environments. It was essential to opt for an ensemble size greater than one to more accurately capture the environment dynamics. Maintaining a moderate number of rollouts per step, combined with more frequent updates to the model parameters, proved sufficient to notably enhance evaluation returns, as this pattern was evident in both sparse reward environments. Regarding the retention of off-policy data, a higher level of retained off-policy data in the mountain car environment led to a significant increase in returns, whereas retaining off-policy data in the sparse pendulum environment was not necessary.
